CKD Super Micro Cylinder SCM Basic (Single Rod) Base SCM-00-40D Stroke 75
#Grup produk P103137940
Sebelum PPN:
Rp1.799.900 - Rp4.199.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Stroke | 75 |
|---|
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature

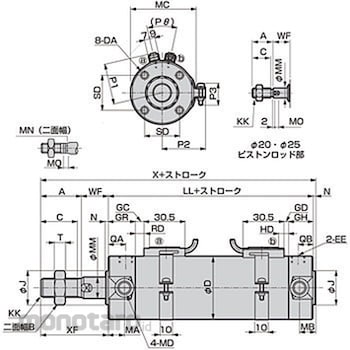

Simple design, overall length is short, easy to install work Dimension J (mm)=25; Dimension SD (mm)=26; Dimension B (mm)=22; Dimension WF (mm)=20; Dimension KK (mm)=M14 x 1.5; Dimension QA (mm)=13; Dimension MC (mm)=44; Dimension T (mm)=8; Dimension MN (mm)=14; Dimension D (mm)=47; Dimension EE=Rc1 / 8; Dimension QB (mm)=12; Dimension MB (mm)=10; Dimension MO (mm)=6; Dimension XF (mm)=50; Dimension C (mm)=27; Dimension A (mm)=30; Dimension DA=M6 depth 12; Dimension MA (mm)=12; Dimension MM (mm)=16; Dimension LL (mm)=78; Dimension N (mm)=2; Dimension MD=M10; Dimension X (mm)=130Ulasan Produk
