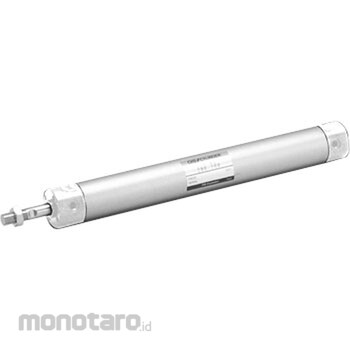

CKD Super Micro Cylinder Scm Basic (Single Rod) Base SCM-00-20B Stroke 25

Simple design, overall length is short, easy to install work Dimension B (mm)=13; Dimension GR (mm)=19; Dimension X (mm)=106; Dimension EE=M5; Dimension E=30 degree (theta); Dimension EB (mm)=12; Dimension SD (mm)=14; Dimension MO (mm)=4; Dimension P=(38 degrees) (theta); Dimension GD (mm)=3.5; Dimension GC (mm)=2.5; Dimension J (mm)=12; Dimension MC (mm)=24; Dimension MD=M5; Dimension HD (mm)=7.5; Dimension GH (mm)=17; Dimension P1 (mm)=19.6; Dimension KK (mm)=M8; Dimension MB (mm)=11; Dimension P2 (mm)=21.5; Dimension MN (mm)=6; Dimension N (mm)=2; Dimension C (mm)=15.5; Dimension D (mm)=26; Dimension DA=M4 depth 6.5; Dimension RD (mm)=6.5; Dimension MA (mm)=11; Dimension A (mm)=18; Dimension LL (mm)=69; Dimension QA (mm)=12; Dimension EC (mm)=27; Dimension EA (mm)=14; Dimension XF (mm)=35; Dimension QB (mm)=10; Dimension MM (mm)=8; Dimension WF (mm)=17; Dimension T (mm)=5
