CKD New Joint GW (Fitting) / (Bulk Head For Tightening Joint)
#Grup produk P103137180
Spesifikasi
| Working Fluid | Compressed air |
|---|---|
| Maximum Working Pressure (MPa) | 1 |
| Negative pressure performance (kPa) | -100 |
| Operating Temperature (°C) | -10 to 60 (but not frozen) |
| Used Tube | Soft nylon tube (F-12 * * ) / Urethane tube (U-95 * * , NU- * * ) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature

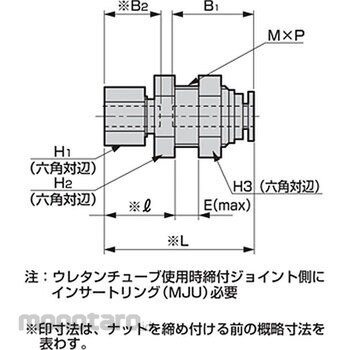

And allowed to flow diverted to bore minute full standard adopted flame heat resin, sealing the tube and fitting adopts V-shaped packing, and reliably sealed can be inserted with a light force Dimension L (mm)=29.5; Dimension E (mm)=5; Dimension B2 (mm)=11; Dimension H2 (mm)=14; Dimension L (mm)=15; Dimension H3 (mm)=14; Dimension H1 (mm)=10; Dimension B1 (mm)=16; Dimension M x P (mm)=M12X1Ulasan Produk
