CKD Tight Cylinder Basic (Single Rod) Base CMK2-CB-20-150
#Grup produk P103136677
Sebelum PPN:
Rp1.399.900 - Rp3.699.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Ambient Temperature (°C) | -10 to 60 (but not freezing) |
|---|---|
| Connection aperture | Rc1/8 |
| Stroke (mm) | 150 |
| Cushion | Rubber cushion |
| Stroke length tolerance | 0 + 2.0 mm (~ 200), 0 + 2.4 mm (more than 200 ~) |
| Allowable Energy Absorption (J) | 0.166 |
| Guaranteed Pressure Resistance (MPa) | 1.6 |
| Minimum Working Pressure (MPa) | 0.1 |
| Operation Method | Backward movement |
| Refueling | Unnecessary (When refueling, use turbine oil Class 1 ISO VG 32) |
| Tube Inner Diameter (mm) | 20 |
| Working Fluid | Compressed air |
| format | Double clevis type (pin and washer split pin attached) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

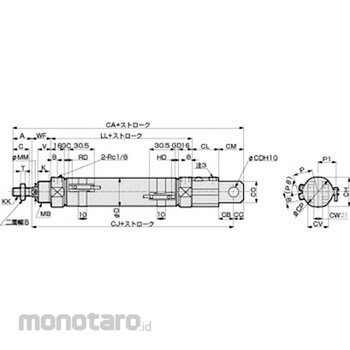

Dimension CO (mm)=22; Dimension CP (mm)=28; Dimension WF (mm)=24; Dimension MM (mm)=10; Dimension V (mm)=14; Dimension CJ (mm)=135; Dimension CD (mm)=10; Dimension C (mm)=18; Dimension CV (mm)=19; Dimension CC (mm)=10; Dimension CA (mm)=165; Dimension LL (mm)=66; Dimension T (mm)=5; Dimension B (mm)=13; Dimension MB (mm)=M18 x 1.5; Dimension KK (mm)=M8 x 1.0; Dimension CL (mm)=31; Dimension A (mm)=20; Dimension CH (mm)=26; Dimension CM (mm)=24; Dimension CW (mm)=8; Dimension K (mm)=12; Dimension D (mm)=21.4; Dimension CB (mm)=14
