CKD Tight Cylinder Basic (Single Rod) Base 2-CC
#Grup produk P103136303
Spesifikasi
| Working Fluid | Compressed air |
|---|---|
| Stroke length tolerance | 0 + 2.0 mm (~ 200), 0 + 2.4 mm (more than 200 ~) |
| Maximum Working Pressure (MPa) | 1 |
| Connection aperture | Rc1/8 |
| Ambient Temperature (°C) | -10 to 60 (but not freezing) |
| Cushion | Rubber cushion |
| Guaranteed Pressure Resistance (MPa) | 1.6 |
| Minimum Working Pressure (MPa) | 0.1 |
| Operating Piston Speed (mm/s) | 50 to 500 |
| Operation Method | Backward movement |
| Refueling | Unnecessary (When refueling, use turbine oil Class 1 ISO VG 32) |
| format | One mountain clevis integrated type |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

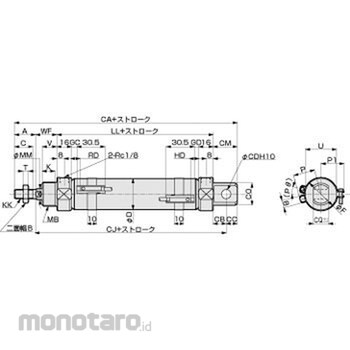

Dimension K (mm)=12; Dimension A (mm)=20; Dimension CO (mm)=22; Dimension MB (mm)=M18 x 1.5; Dimension CJ (mm)=102; Dimension CM (mm)=21; Dimension CR (mm)=56; Dimension F (mm)=28; Dimension D (mm)=21.4; Dimension MM (mm)=10; Dimension CQ (mm)=16; Dimension CS (mm)=76; Dimension CA (mm)=131; Dimension CD (mm)=8; Dimension C (mm)=18; Dimension T (mm)=5; Dimension U (mm)=24; Dimension V (mm)=14; Dimension CC (mm)=9; Dimension WF (mm)=24; Dimension KK (mm)=M8 x 1.0; Dimension B (mm)=13; Dimension LL (mm)=66; Dimension CB (mm)=12
