CKD New Joint GW (Fitting) / (Double Y Type)
#Grup produk P103135960
Spesifikasi
| Working Fluid | Compressed air |
|---|---|
| Used Tube | Soft nylon tube (F-12 * *)/Urethane tube (U-95 * * , NU- * *) |
| Maximum Working Pressure (MPa) | 1 |
| Operating Temperature (°C) | -10 to 60 (but not frozen) |
| Negative pressure performance (kPa) | -100 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

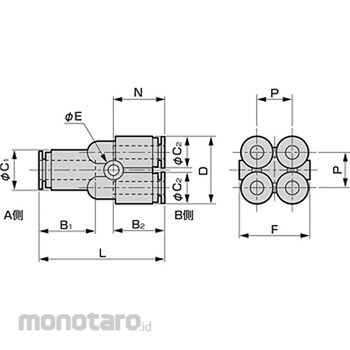

And allowed to flow diverted to bore minute full standard adopted flame heat resin, sealing the tube and fitting adopts V-shaped packing, and reliably sealed can be inserted with a light force Dimension C1 (mm)=12.5; Dimension N (mm)=15.5; Dimension F (mm)=22; Dimension L (mm)=39; Dimension B1 (mm)=17.5; Dimension B2 (mm)=16; Dimension P (mm)=11; Dimension E (mm)=3.2; Dimension C2 (mm)=10; Dimension D (mm)=21
