CKD Guided Cylinder Slide Bearing STG-M-40-100
#Grup produk P103135775
Sebelum PPN:
Rp8.199.900 - Rp9.299.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Connection aperture | Rc1/8 |
|---|---|
| Stroke length tolerance | +2.0 mm |
| Cushion | With rubber cushion |
| Refueling | Unnecessary (When refueling, use turbine oil Class 1 ISO VG 32) |
| Allowable Energy Absorption (J) | 0.627 |
| Ambient Temperature (°C) | -10 to 60 (but not freezing) |
| Bearing Type | Slide bearing |
| Guaranteed Pressure Resistance (MPa) | 1.6 |
| Maximum Working Pressure (MPa) | 1 |
| Minimum Working Pressure (MPa) | 0.1 |
| Operating Piston Speed (mm/s) | 50 to 500 |
| Operation Method | Backward movement |
| Screw Type | Rc screw |
| Stroke (mm) | 100 |
| Tube Inner Diameter (mm) | 40 |
| Working Fluid | Compressed air |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

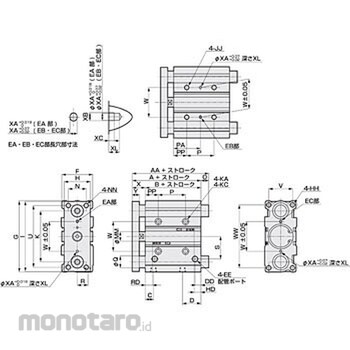

Dimension HH (mm)=M8 depth 20; Dimension R (mm)=18; Dimension KA (mm)=6.3 penetration; Dimension C (mm)=14; Dimension WW (mm)=106; Dimension MM (mm)=16; Dimension HD (mm)=12; Dimension Q (mm)=20; Dimension N (mm)=30; Dimension F (mm)=54; Dimension EE (mm)=Rc1 / 8; Dimension XB (mm)=4.5; Dimension V (mm)=40; Dimension K (mm)=86; Dimension D (mm)=31; Dimension U (mm)=104; Dimension XA (mm)=4; Dimension PP (mm)=22; Dimension JJ (mm)=M8 depth 16; Dimension H (mm)=44; Dimension Y (mm)=12; Dimension KC (mm)=11 counterbore depth 7.5; Dimension PA (mm)=25 or less: 34, 25 or more and 100 or less: 46, 100 or more and 200 or less: 84; Dimension G (mm)=120; Dimension S (mm)=38; Dimension O (mm)=50 or less: 13, 50 or more and 200 or less: 34; Dimension W (mm)=50; Dimension P (mm)=25 or less: 24, 25 or more and 100 or less: 48, 100 or more and 200 or less: 124; Dimension A (mm)=66; Dimension AA (mm)=50 or less: 79, more than 50 and 200 or less: 100; Dimension DD (mm)=10; Dimension I (mm)=118; Dimension RD (mm)=13; Dimension NN (mm)=M8 penetration; Dimension XC (mm)=3; Dimension XL (mm)=6; Dimension B (mm)=44; Dimension X (mm)=22 -2
