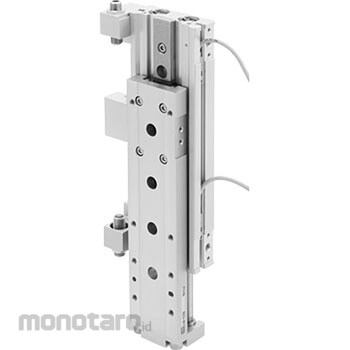

CKD Linear Slide Cylinder Double Acting LCR-25-10
#Grup produk P103135058
Sebelum PPN:
Rp8.799.900 - Rp9.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Working Fluid | Compressed air |
|---|---|
| Maximum Working Pressure (MPa) | 0.7 |
| Stroke (mm) | 10 |
| Connection aperture | Body side: Rc1/8, body rear: Rc1/8 |
| Allowable Energy Absorption (J) | 0.314 |
| Ambient Temperature (°C) | -10 to 60 (but not freezing) |
| Cushion | With rubber cushion |
| Guaranteed Pressure Resistance (MPa) | 1.05 |
| Minimum Working Pressure (MPa) | 0.15 |
| Operating Piston Speed (mm/s) | 50 to 500 |
| Operation Method | Backward movement |
| Refueling | Unnecessary (When refueling, use turbine oil Class 1 ISO VG 32) |
| Stroke adjustment range (mm) | 10 (Shock killer type stopper one side) |
| Stroke length tolerance | +2.0 mm |
| Tube Inner Diameter (mm) | 25 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Dimension I (mm)=Rc1 / 8; Dimension B (mm)=57; Dimension A (mm)=20.5; Dimension HD (mm)=78.5; Dimension E (mm)=2.5; Dimension L1 (mm)=122.5; Dimension RD (mm)=19; Dimension G (mm)=19; Dimension W (mm)=35.5; Dimension J (mm)=26.5; Dimension H (mm)=54.5; Dimension N (mm)=2; Dimension X (mm)=42.5; Dimension V (mm)=83.8; Dimension C (mm)=11.5; Dimension L (mm)=M5 depth 4; Dimension Y (mm)=39; Dimension F (mm)=19; Dimension K (mm)=9; Dimension L2 (mm)=107.5; Dimension D (mm)=2.5
