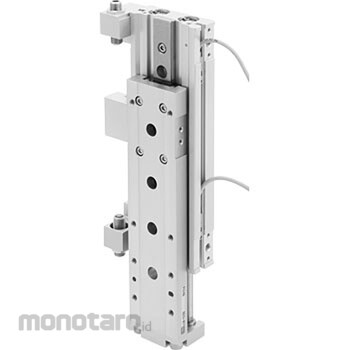

CKD Linear Slide Cylinder Lcr Double Acting Lcr-12
#Grup produk P103134873
Sebelum PPN:
Rp6.799.900 - Rp11.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Minimum Working Pressure (MPa) | 0.15 |
|---|---|
| Stroke adjustment range (mm) | 14.5 (Shock killer type stopper one side) |
| Operating Piston Speed (mm/s) | 50 to 500 |
| Operation Method | Backward movement |
| Allowable Energy Absorption (J) | 0.112 |
| Ambient Temperature (°C) | -10 to 60 (but not freezing) |
| Connection aperture | Body side: M5, body rear: M3 |
| Cushion | With rubber cushion |
| Guaranteed Pressure Resistance (MPa) | 1.05 |
| Maximum Working Pressure (MPa) | 0.7 |
| Refueling | Unnecessary (When refueling, use turbine oil Class 1 ISO VG 32) |
| Stroke length tolerance | +2.0 mm |
| Tube Inner Diameter (mm) | 12 |
| Working Fluid | Compressed air |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Dimension J (mm)=25.5; Dimension HD (mm)=52.5; Dimension RD (mm)=16.5; Dimension B (mm)=29; Dimension F (mm)=13; Dimension L2 (mm)=79; Dimension D (mm)=1; Dimension E (mm)=1; Dimension H (mm)=31; Dimension W (mm)=26; Dimension Y (mm)=32.5; Dimension A (mm)=15.5; Dimension V (mm)=66.5; Dimension I (mm)=M5 depth 4; Dimension L1 (mm)=91; Dimension X (mm)=37.5; Dimension G (mm)=13; Dimension N (mm)=2; Dimension K (mm)=12.5; Dimension L (mm)=M5 depth 4; Dimension C (mm)=12
