CKD Guided Cylinder Rolling Bearing STG-B-50-5~ Series
#Grup produk P103134785
Sebelum PPN:
Rp9.999.900 - Rp11.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Bearing Type | Rolling bearing |
|---|---|
| Cushion | With rubber cushion |
| Stroke length tolerance | +2.0 mm |
| Guaranteed Pressure Resistance (MPa) | 1.6 |
| Allowable Energy Absorption (J) | 0.98 |
| Ambient Temperature (°C) | -10 to 60 (but not freezing) |
| Connection aperture | Rc1/4 |
| Maximum Working Pressure (MPa) | 1 |
| Minimum Working Pressure (MPa) | 0.1 |
| Operating Piston Speed (mm/s) | 50 to 500 |
| Operation Method | Backward movement |
| Refueling | Unnecessary (When refueling, use turbine oil Class 1 ISO VG 32) |
| Screw Type | Rc screw |
| Stroke (mm) | 50 |
| Tube Inner Diameter (mm) | 50 |
| Working Fluid | Compressed air |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

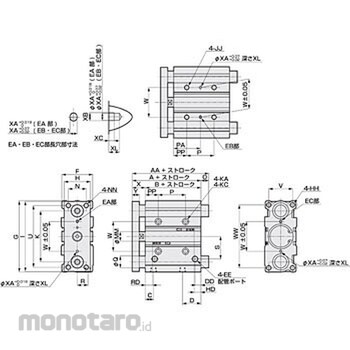

Dimension PA (mm)=25 or less: 36, 25 or more and 100 or less: 48, 100 or more and 200 or less: 86; Dimension XA (mm)=5; Dimension W (mm)=66; Dimension V (mm)=46; Dimension R (mm)=21.5; Dimension D (mm)=35; Dimension RD (mm)=13.5; Dimension WW (mm)=130; Dimension XC (mm)=4; Dimension U (mm)=130; Dimension EE (mm)=Rc1 / 4; Dimension DD (mm)=11; Dimension C (mm)=14; Dimension JJ (mm)=M10 depth 20; Dimension N (mm)=40; Dimension S (mm)=47; Dimension B (mm)=44; Dimension XL (mm)=8; Dimension Y (mm)=16; Dimension G (mm)=148; Dimension AA (mm)=50 or less: 91, more than 50 and less than 100: 114, more than 100 and less than 200: 134; Dimension I (mm)=146; Dimension KC (mm)=14 counterbore depth 9; Dimension KA (mm)=8.6 penetration; Dimension XB (mm)=6; Dimension F (mm)=64; Dimension A (mm)=72; Dimension Q (mm)=20; Dimension NN (mm)=M10 penetration; Dimension MM (mm)=20; Dimension O (mm)=50 or less: 19, 50 or more and 100 or less: 42, 100 or more and 200 or less: 62; Dimension K (mm)=110; Dimension HD (mm)=11.5; Dimension H (mm)=60; Dimension P (mm)=25 or less: 24, 25 or more and 100 or less: 48, 100 or more and 200 or less: 124; Dimension PP (mm)=24; Dimension HH (mm)=M10 depth 22; Dimension X (mm)=28 -2
