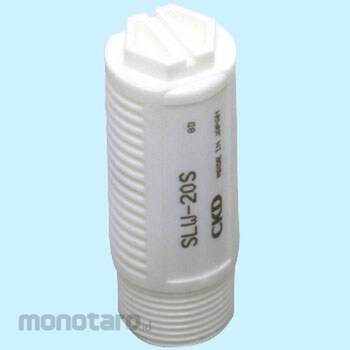

CKD Silencer High Silencing Compact Type SLW-20S
#Grup produk P103134262
Spesifikasi
| Working Fluid | Compressed air |
|---|---|
| Fluid Temperature (°C) | 5 to 60 (but not frozen) |
| Operating Temperature Range (°C) | -10 to 60 °C (but without freezing) |
| Maximum Working Pressure (MPa) | 1.0 |
| Effective Cross Section Area (mm²) | 90 |
| Body Material | Polyamide resin (flame retardant resin UL94 standard VO equivalent) |
| Color | White |
| Compatible Cylinder Tube Inner Diameter (phi mm) | 100-200 |
| Connection aperture | 3/4 |
| Flow Rate ANR (L/minute) | 6000 |
| Guaranteed Pressure Resistance (MPa) | 1.5 |
| Mass (g) | 20 |
| Material (element) | PP sintering resin |
| Silence Effect (dB) | 30 or more |
| TRUSCO Number | 353-1678 |
| Type | Made of resin |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Dimension D (mm)=28; Dimension B (mm)=58.4; Dimension C (mm)=18; Dimension E (mm)=19; Dimension A (mm)=75.4
