CKD Super Micro Cylinder SCM Basic (Single Rod) Base SCM-00-63D Stroke 75
#Grup produk P103130655
Sebelum PPN:
Rp3.299.900 - Rp5.799.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature

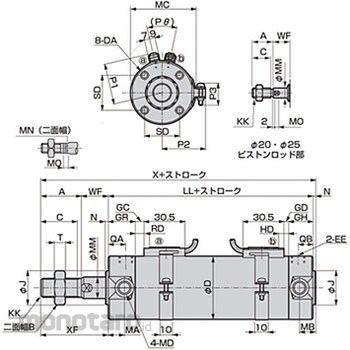

Simple design, overall length is short, easy to install work Dimension X (mm)=150; Dimension EE=Rc1 / 4; Dimension MN (mm)=17; Dimension J (mm)=32; Dimension N (mm)=2; Dimension LL (mm)=90; Dimension MD=M14; Dimension MM (mm)=20; Dimension A (mm)=35; Dimension MO (mm)=8; Dimension KK (mm)=M18 x 1.5; Dimension MB (mm)=12; Dimension XF (mm)=58; Dimension MC (mm)=69; Dimension DA=M10 depth 16; Dimension C (mm)=32; Dimension D (mm)=72; Dimension MA (mm)=13; Dimension QB (mm)=12; Dimension SD (mm)=38; Dimension T (mm)=11; Dimension WF (mm)=23; Dimension QA (mm)=15; Dimension B (mm)=27Ulasan Produk
