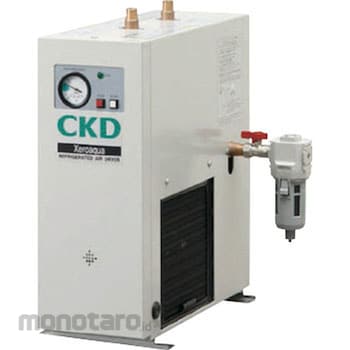

CKD Refrigerated Air Dryer Zero Aqua
#Grup produk P103129288
Spesifikasi
| Working Fluid | Compressed air |
|---|---|
| Inlet Air Temperature (°C) | 5 to 80 |
| Exit Air Pressure Dew Point (°C) | 10 |
| Inlet air Pressure (MPa) | 0.15 to 1.0 |
| Amount of Treated Air at 50/60Hz (m³/minute) | 0.30/0.35 (inlet air temperature 55 °C, inlet air pressure 0.7 MPa, ambient temperature 32 °C) |
| Ambient Temperature (°C) | 2 to 45 (for power supply voltage +/- 5%) |
| Connection aperture | R1/2 |
| Mass (kg) | 21 |
| Maximum Working Pressure (MPa) | 1 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Removing moisture from compressed air, prevent the problem of pneumatic equipment by moisture. Equipment for moisture in the compressed air is removed to give a dry air
Feature
It adopted the stainless steel heat exchanger corresponding to the oil-free air. To prevent air loss by each time draining generated in the dryer. Of zero ozone depletion has adopted a new refrigerant R-134a or R-407C. Thin slim and compact body, line, doUlasan Produk
