CKD Super Micro Cylinder SCM Basic (Single Rod) Base SCM-TA-25B Stroke 250

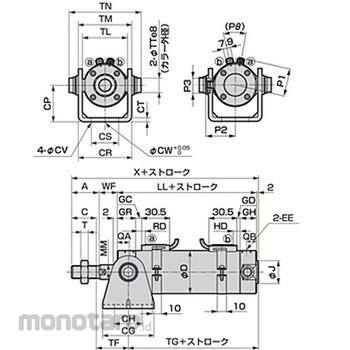

Simple design, overall length is short, easy to install work Dimension TT (mm)=10; Dimension QA (mm)=12; Dimension D (mm)=31; Dimension GH (mm)=17; Dimension CT (mm)=3.2; Dimension X (mm)=111; Dimension TM (mm)=43; Dimension KK=M10 x 1.25; Dimension QB (mm)=10; Dimension CV (mm)=5.5; Dimension TF (mm)=29; Dimension TG (mm)=60; Dimension MM (mm)=10; Dimension J (mm)=14; Dimension CW (mm)=10; Dimension CR (mm)=39.8; Dimension CS (mm)=20; Dimension A (mm)=22; Dimension GR (mm)=19; Dimension T (mm)=6; Dimension B (mm)=17; Dimension WF (mm)=18; Dimension CH (mm)=28; Dimension TN (mm)=53; Dimension CG (mm)=42; Dimension TL (mm)=33; Dimension CP (mm)=30; Dimension C (mm)=19.5; Dimension LL (mm)=69; Dimension EE=M5
