CKD Super Micro Cylinder SCM Basic (Single Rod) Base SCM-LB-50D Stroke 75
#Grup produk P103121888
Sebelum PPN:
Rp2.899.900 - Rp5.399.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

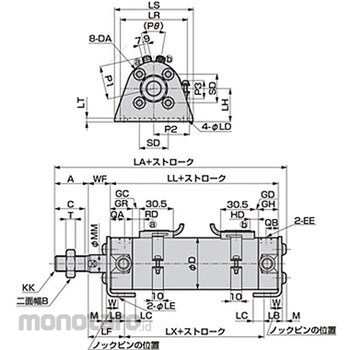

Simple design, overall length is short, easy to install work Dimension LA (mm)=157.5; Dimension LT (mm)=4.5; Dimension LR (mm)=66; Dimension GH (mm)=22; Dimension LF (mm)=40.5; Dimension M (mm)=5; Dimension C (mm)=32; Dimension EE=Rc1 / 4; Dimension T (mm)=11; Dimension MM (mm)=20; Dimension LB (mm)=22; Dimension LC (mm)=11; Dimension LX (mm)=55; Dimension QB (mm)=12; Dimension LH (mm)=40; Dimension D (mm)=58; Dimension GR (mm)=25; Dimension W (mm)=17.5; Dimension LE (mm)=5; Dimension LD (mm)=9; Dimension LS (mm)=86; Dimension A (mm)=35; Dimension DA=M8; Dimension QA (mm)=15; Dimension KK=M18 x 1.5; Dimension WF (mm)=23; Dimension LL (mm)=90; Dimension B (mm)=27; Dimension SD (mm)=32
