CKD Super Micro Cylinder SCM Basic (Single Rod) Base SCM-TA-32D Stroke 150
#Grup produk P103121587
Sebelum PPN:
Rp1.499.900 - Rp3.799.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

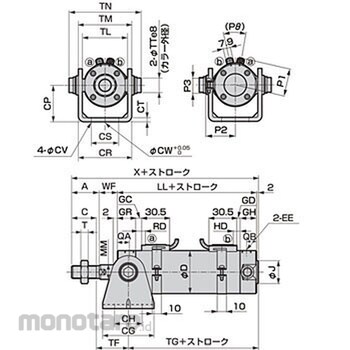

Simple design, overall length is short, easy to install work Dimension TM (mm)=54.5; Dimension TF (mm)=29; Dimension CG (mm)=48; Dimension QA (mm)=12; Dimension J (mm)=18; Dimension CP (mm)=35; Dimension KK=M10 x 1.25; Dimension TG (mm)=62; Dimension TT (mm)=12; Dimension D (mm)=38; Dimension EE=Rc1 / 8; Dimension TL (mm)=40; Dimension CT (mm)=4.5; Dimension CV (mm)=6.6; Dimension X (mm)=113; Dimension TN (mm)=67.7; Dimension GR (mm)=19; Dimension A (mm)=22; Dimension B (mm)=17; Dimension WF (mm)=18; Dimension LL (mm)=71; Dimension CW (mm)=10; Dimension GH (mm)=17; Dimension MM (mm)=12; Dimension CS (mm)=22; Dimension QB (mm)=10; Dimension CR (mm)=49.4; Dimension CH (mm)=28; Dimension T (mm)=6; Dimension C (mm)=19.5
