CKD Super Micro Cylinder SCM Basic (Single Rod) Base SCM-TA-32B Stroke 300

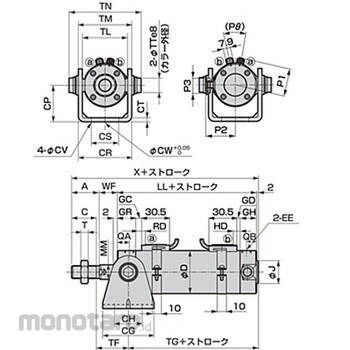

Simple design, overall length is short, easy to install work Dimension CR (mm)=49.4; Dimension X (mm)=113; Dimension KK=M10 x 1.25; Dimension WF (mm)=18; Dimension T (mm)=6; Dimension C (mm)=19.5; Dimension GH (mm)=17; Dimension CV (mm)=6.6; Dimension MM (mm)=12; Dimension CW (mm)=10; Dimension TM (mm)=54.5; Dimension QA (mm)=12; Dimension TL (mm)=40; Dimension B (mm)=17; Dimension CS (mm)=22; Dimension TT (mm)=12; Dimension D (mm)=38; Dimension TN (mm)=67.7; Dimension CP (mm)=35; Dimension J (mm)=18; Dimension LL (mm)=71; Dimension CH (mm)=28; Dimension TF (mm)=29; Dimension QB (mm)=10; Dimension CT (mm)=4.5; Dimension EE=Rc1 / 8; Dimension TG (mm)=62; Dimension CG (mm)=48; Dimension GR (mm)=19; Dimension A (mm)=22
