CKD Super Micro Cylinder SCM Basic Single Rod Base SCM-CA-32D Stroke 250
#Grup produk P103121082
Sebelum PPN:
Rp1.699.900 - Rp3.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

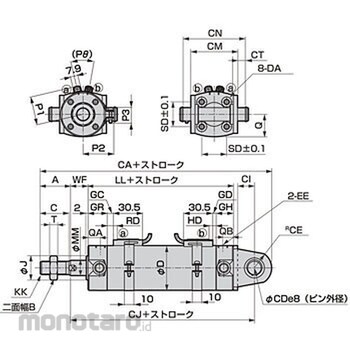

Dimension KK=M10 x 1.25; Dimension WF (mm)=18; Dimension QA (mm)=12; Dimension A (mm)=22; Dimension CJ (mm)=108.5; Dimension RD (mm)=6.5; Dimension P=(30 degrees) (theta); Dimension CD (mm)=12; Dimension HD (mm)=9.5; Dimension CP (mm)=35; Dimension SD (mm)=20; Dimension C (mm)=19.5; Dimension CR (mm)=49.4; Dimension GC (mm)=2.5; Dimension DA=M5; Dimension CA (mm)=145.5; Dimension CQ (mm)=59.4; Dimension P1 (mm)=25.6; Dimension GR (mm)=19; Dimension CN (mm)=54; Dimension CS (mm)=22; Dimension CH (mm)=28; Dimension CE (mm)=15; Dimension QB (mm)=10; Dimension MM (mm)=12; Dimension CG (mm)=48; Dimension GH (mm)=17; Dimension CK (mm)=154.5; Dimension CM (mm)=40; Dimension CI (mm)=15.5; Dimension EE=Rc1 / 8; Dimension J (mm)=18; Dimension GD (mm)=5.5; Dimension T (mm)=6; Dimension CW (mm)=10; Dimension Q (mm)=19; Dimension CO (mm)=54; Dimension D (mm)=38; Dimension B (mm)=17; Dimension CV (mm)=6.6; Dimension P2 (mm)=27.6; Dimension LL (mm)=71; Dimension CT (mm)=4.5
