CKD Super Micro Cylinder SCM Basic Single Rod Base SCM-CA-25D Stroke 250

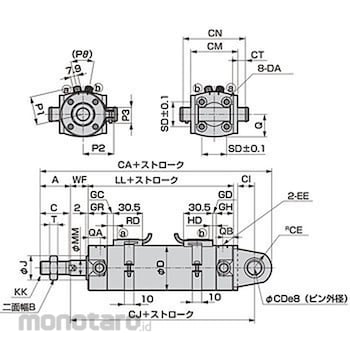

Dimension P=(34 degree) (theta); Dimension GD (mm)=4.5; Dimension CW (mm)=10; Dimension DA=M5; Dimension CQ (mm)=48; Dimension CS (mm)=20; Dimension T (mm)=6; Dimension P1 (mm)=22.1; Dimension CE (mm)=13; Dimension GH (mm)=17; Dimension CO (mm)=45.5; Dimension CN (mm)=42.6; Dimension CD (mm)=10; Dimension LL (mm)=69; Dimension RD (mm)=5.5; Dimension CH (mm)=28; Dimension QA (mm)=12; Dimension KK=M10 x 1.25; Dimension GR (mm)=19; Dimension EE=Rc1 / 8; Dimension Q (mm)=15.5; Dimension CG (mm)=42; Dimension CJ (mm)=103; Dimension J (mm)=14; Dimension HD (mm)=8.5; Dimension CK (mm)=146; Dimension CV (mm)=5.5; Dimension CM (mm)=33; Dimension SD (mm)=16.5; Dimension D (mm)=31; Dimension A (mm)=22; Dimension MM (mm)=10; Dimension QB (mm)=10; Dimension WF (mm)=18; Dimension CI (mm)=12.8; Dimension C (mm)=19.5; Dimension CT (mm)=3.2; Dimension P2 (mm)=23.9; Dimension CP (mm)=30; Dimension CR (mm)=39.8; Dimension B (mm)=17; Dimension CA (mm)=138; Dimension GC (mm)=1.5
