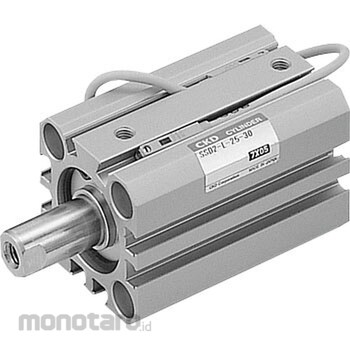

CKD Super Compact Cylinder Double Acting, Single Rod Type SSD2-L-12
#Grup produk P103120162
Spesifikasi
| Guaranteed Pressure Resistance (MPa) | 1.6 |
|---|---|
| Maximum Working Pressure (MPa) | 1 |
| Allowable Energy Absorption (J) | 0.004 |
| Ambient Temperature (°C) | -10 to 60 (but not freezing) |
| Connection aperture | M5 |
| Minimum Working Pressure (MPa) | 0.1 |
| Operating Piston Speed (mm/s) | 50 to 500 |
| Operation Method | Backward movement |
| Refueling | Unnecessary (When refueling, use turbine oil Class 1 ISO VG 32) |
| Stroke length tolerance | +1.0 mm |
| Tube Inner Diameter (mm) | 12 |
| Type | Reverse movement, single rod type, with switch |
| Working Fluid | Compressed air |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Dimension I (mm)=3.5; Dimension FB (mm)=4.5; Dimension KK (mm)=M3 depth 6; Dimension EE (mm)=M5; Dimension KA (mm)=M4 depth 7; Dimension D (mm)=5.5; Dimension A (mm)=25.5; Dimension B (mm)=22; Dimension K (mm)=32; Dimension WF (mm)=3.5; Dimension C (mm)=5.5; Dimension F (mm)=25; Dimension MM (mm)=6; Dimension FA (mm)=13 (16.5); Dimension N (mm)=15.5; Dimension M (mm)=5; Dimension J (mm)=6.5 Counterbore depth 3.5; Dimension RD (mm)=-
