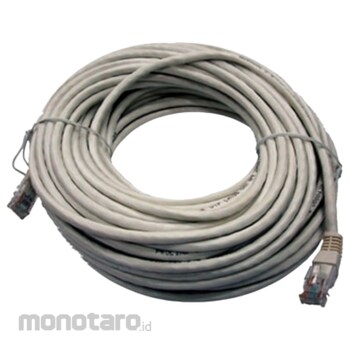

PROLiNK Patch Cord
#Grup produk P103117283
Spesifikasi
| Conductor | 23 AWG (4 pair) |
|---|---|
| Conductor Diameter (mm) | 0.56±0.02 |
| Insulation | High Density Polyethylene |
| Insulation Diameter (mm) | 0.95±0.02 |
| Cable Diameter (mm) | 5.6±0.15 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
CONSTRUCTION - Pairs : 2 Insulated conductors twisted together - Printing : Each meter printed with sequential length counter - Jacket Nominal Wall Thickness : 0.7±0.01mm - Insulation Nominal Wall Thickness : 0.2mm ELECTRICAL PROPERTIES - Characteristic Impedance : 1. 1to100MHz: 100Ω±15% 2. 100to250MHz: 100Ω±20% - Conductor Resistance : <20/100m at 20°C - Insulation Resistance : ≥5000MΩ/KM - Resistance Unbalance : ≤2 - Dielectrical Strength : 1.0kv,DC,1min COLOUR CODE Pair No. : Colour A : White-Blue Stripe and Blue B : White-Orange Stripe and Orange C : White-Green Stripe and Green D : White-Brown Stripe and Brown MECHANICAL PROPERTIES Operating Temperature : 70°C
Feature
Patch Cord CAT6 - 23 AWG conductor - Higher signal-to-noise ratio - Meets the requirements of TIA/EIA-568A/568B & ISO 11801 PROLiNK CAT6 patch cord is designed with four twisted pairs of cables, ensuring stability of high speed data transmission. It transmits bandwidth of 250 MHz, provides a higher signal-to-noise ratio and allows higher reliability and higher data rates. The PROLiNK CAT6 patch cord meets the requirements of TIA/EIA-568A/568B & ISO 11801.Ulasan Produk
