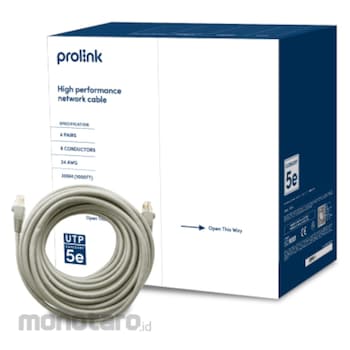

PROLiNK UTP LAN Cable (305m)
#Grup produk P103117274
Spesifikasi
| Conductor | 23 AWG (4 pair) |
|---|---|
| Conductor Diameter (mm) | 0.51±0.01 |
| Insulation | High Density Polyethylene |
| Insulation Diameter (mm) | 0.93±0.02 |
| Cable Diameter (mm) | 5.1±0.15 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
CONSTRUCTION - Pairs : 2 Insulated conductors twisted together - Printing : Each meter printed with sequential length counter - Jacket Nominal Wall Thickness : 0.7±0.01mm - Insulation Nominal Wall Thickness : 0.2mm ELECTRICAL PROPERTIES - Characteristic Impedance : 1. 64kHz: 125Ω±20% 2. 1to250MHz: 100Ω±15% - Conductor Resistance : MAX 18Ω/100m at 20°C - Insulation Resistance : MIN 150MΩ/KM - Mutual Capacitance : MAX 5600pf/100M - Resistance Unbalance : MAX 5% - Resistance Unbalance : MAX 300pf/100M COLOUR CODE Pair No : Colour A : White-Blue Stripe and Blue B : White-Orange Stripe and Orange C : White-Green Stripe and Green D : White-Brown Stripe and Brown MECHANICAL PROPERTIES - Operating Temperature : 75°C
Feature
UTP LAN Cable (305M) CAT5E - Enhanced performance Cat5e ethernet LAN cable provides universal connectivity to your home or office for high-speed network - Supports Gigabit Ethernet (1000 Base-T) standard with transmission bandwidth of up to 100MHz and backwards compatible - 4-pair unshielded twisted pair (UTP) cable - 24 AWG conductor - Thicker conductor diameter for higher reliability and higher data rates - Higher signal-to-noise ratio - Meets the requirements of TIA/EIA-568A/568B & ISO 11801 - Packaged in an easy-to-pull box for convenience installationUlasan Produk
