This product conforms to the Electrical Appliances and Materials Safety Act. Distinguishing the coil voltage is easy by the color of the cosmetic paper of the coil.
Power consumption (VA):
50 Hz: about 1.2 / 1.4
60 Hz: about 1.0 / 1.2
Withstand voltage:
Between coil-contact and c-contact, each: Between AC2000
contact gap:
Between terminals of AC1000 socket: AC2000

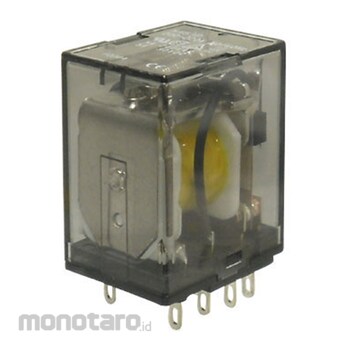

Fuji Electric Mini Control Relay
#Grup produk P103081599
Spesifikasi
| Number of Poles | 3 |
|---|---|
| External Dimensions (WxDxH) (mm) | 21.0x27.8x40.6 |
| Compatible Socket | TP511, TP11B, TP11R2, TP511X2 |
| Rated Current (A) | 5 |
| Number of Pins | 11 |
| Impact Resistance (Malfunction) (m/s2) | 200 |
| Coil Rated Voltage(V) | AC100 |
| Cycle Frequency (Hz) | 50/60 |
| Rated Insulation Voltage (V) | 250 |
