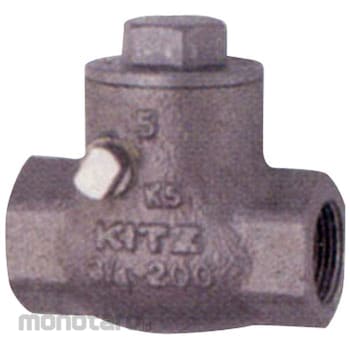

Kitz 10K Stainless Steel Swing Chuck UOM Series
#Grup produk P103052126
Spesifikasi
| Material (hinge pin) | SUS316 |
|---|---|
| Material (disk) | SCS14A |
| Class | 10K |
| Interplanar dimension (mm) | 65 |
| Body Material | SCS14A |
| Connection Method | The screw-shaped |
| Cover Material | SCS14A/SUS316 |
| Dimension H (mm) | 45 |
| Dimension L (mm) | 65 |
| Fluid Used | Water, oil, air, steam, gas |
| Handle Shape | Without handle |
| Material (Gasket) | Non-asbestos sheet-door |
| Maximum Working Pressure (MPa) | 1.4 (+120°C below the static water flow), 1.1 (+150°C below the steam, air, non-flammable gas, oil), 1.0 (+180°C below the steam, air, non-flammable gas, oil) |
| Nominal Diameter A | 15 |
| Nominal Diameter B | 1/2 |
| Shape | straight |
| Valve Type | Chuck valve |
