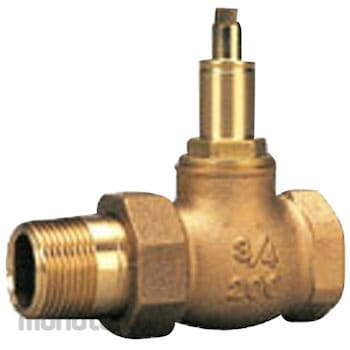

Kitz 200 Type Fan Coil Bulb (for Straight Type for Copper Pipe) (RSH Series)
#Grup produk P103051118
Spesifikasi
| Material (Gasket) | T#1995 |
|---|---|
| Dimension D1 (mm) | Rc3/4 |
| Material (disk) | PTFE |
| Material (O ring) | FKM |
| Material (bonnet) | C3771BE |
| Body Material | CAC406 |
| Class | 200 type |
| Connection Method | The screw-shaped |
| Dimension H (mm) | 72 |
| Dimension L (mm) | 56 |
| Dimension L1 (mm) | 60.5 |
| Dimension S (mm) | Hexagonal 33 |
| Dimension S1 (mm) | Octagonal 37 |
| Dimensions d2 (mm) | R3/4 |
| Flow Rate Setting Range (L/minute) | 0 to 30 |
| Fluid Used | Water, oil |
| Nominal Diameter A | 20 |
| Nominal Diameter B | 3/4 |
| Pressure loss (kPa) | 60 or less |
