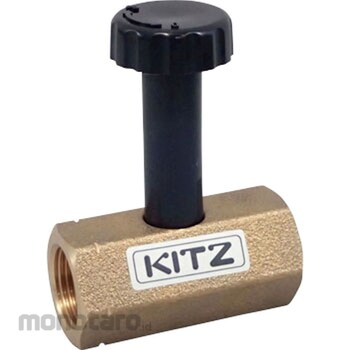

Kitz Gauge Valve for Pressure Gauge (Needle Valve)
#Grup produk P103050827
Spesifikasi
| Class | 20K |
|---|---|
| Dimension H (mm) | 53.5 |
| Dimension L (mm) | 46 |
| Weight (kg) | 0.126 |
| Working Fluid Temperature (°C) | 0 to 80 |
| Connection Method | Taper screw x parallel screws |
| Fluid Used | Water, oil, air |
| Handle Shape | Chiefs form |
| Material | Bronze (CAC406C) |
| Maximum Working Pressure (MPa) | 2.75 (0°C - +80°C water, oil, air) |
| Nominal Diameter A | 8 |
| Nominal Diameter B | 1/4 |
| Shape | straight |
| Type | Gauge valve |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
Adopt a needle type valve structure to minimize needle shake of the gauge. It protects the gauge even at places where vibrations and pulsations are intense, has excellent durability and earthquake resistance. Bronze material excellent in durabiUlasan Produk
