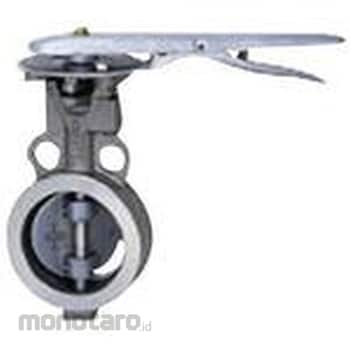

Kitz 10K Stainless Steel Butterfly Valve (Lever Type, PTFE) (UB Series) (Katup)
#Grup produk P103050632
Sebelum PPN:
Rp13.999.000 - Rp30.999.000
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Material (stem) | SUS304N2 |
|---|---|
| Material (disk) | SCS13A |
| Material (Ground) | SCS13A |
| Material (Sheet) | PTFE |
| Material (gland packing) | PTFE |
| Material (Gasket) | PTFE |
| Adaptable Flange | JIS 10K |
| Body Material | SCS13A |
| Class | 10K |
| Material (Handle) | FCD450-10 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
- When using piping, please use the gasket specified below. Gasket type: Non-asbestos joint sheet gasket, reinforced filler filled PTFE sheet gasket (PTFE wrapping gasket, spiral gasket, metallic gasket can not be used). _x000D_- Dimensions of the gasket: JIS B 2238 standard product, ASME B 16.21 standard product (however, the thickness of the gasket is 3mm or more). _x000D_
- Can not be used for stub end (lap joint, pipe end stainless steel pipe fitting) and JIS 5K large seat flange (RF flange). _x000D_
- When using the large plane (RF) flange of JIS 10K, ASME class 150, please center sufficiently. _x000D_
- The flow direction of the UB series is limited. When piping, please install so that the arrow displayed on the body is in the direction of high pressure side when valve is closed and low pressure side when valve is closed (The arrows are shown on the upper side of the side of the drive part of the body).
Feature
Lever operation type. Essential part All stainless steel Further double eccentric structure performance valve.Ulasan Produk
