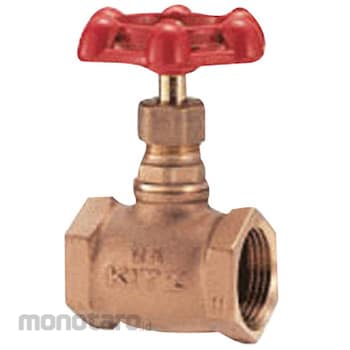

Kitz Globe Valve (Screwed Type, with Polytetrafluoroethylene (PTFE) Dish) (QA Series)
#Grup produk P103050270
Spesifikasi
| Material (Handle) | ZDC |
|---|---|
| Material (disk) | PTFE |
| Material (bonnet) | C3771BE |
| Dimension H (mm) | 70 |
| Body Material | CAC |
| Connection Method | The screw-shaped |
| Dimension D1 (mm) | 50 |
| Dimension L (mm) | 44 |
| Dimension S1 (mm) | 26 |
| Dimensions d2 (mm) | Rc1/2 |
| Fluid Used | Water, oil |
| Handle Shape | circular |
| Material (Packing) | Non-asbestos |
| Material (stem) | Dezincification brass rod |
| Maximum Working Pressure (MPa) | 0.78 (+70°C below the static running water) |
| Nominal Diameter A | 15 |
| Nominal Diameter B | 1/2 |
| Shape | straight |
| Valve Type | Globe Valve |
