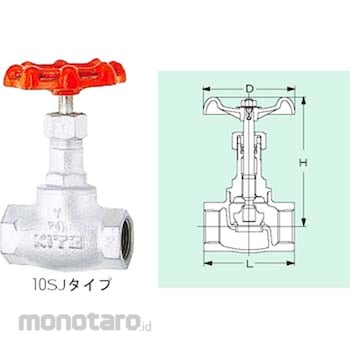

Kitz Globe Valve (Conforming To JIS 10K) 10SJ Series
#Grup produk P103050173
Spesifikasi
| Material (stem) | SUS420J2 |
|---|---|
| Material (disk) | SUS403 |
| Material (bonnet) | FCD-S |
| Material (Handle) | FCD400-15 |
| Class | 10K |
| Dimension H (mm) | 250 |
| Body Material | FCD-S |
| Connection Method | The screw-shaped |
| Dimension L (mm) | 180 |
| Dimensions d (mm) | 180 |
| Fluid Used | Water, oil, air, steam, gas |
| Handle Shape | circular |
| Material (Gasket) | Stainless steel foil input expanded graphite sheet |
| Material (Packing) | Non-asbestos |
| Maximum Working Pressure (MPa) | 1.37 (-10 - +120°C electrostatic running water), 0.98 (-10 - +220°C steam, air, gas, oil, pulsating water) |
| Nominal Diameter A | 65 |
| Nominal Diameter B | 2 1/2 |
| Shape | straight |
| Type | Ductile |
| Valve Type | Globe Valve |
