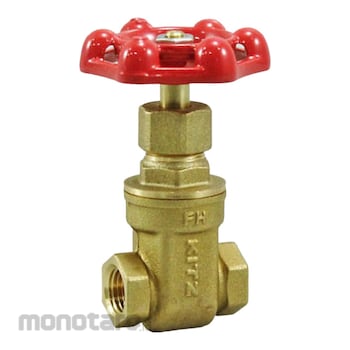

Kitz Bronze Gate Valve
#Grup produk P103049982
Spesifikasi
| Material (bonnet) | C3771BE |
|---|---|
| Material (stem) | K metal |
| Class | 125 type |
| Dimension H (mm) | 70 |
| Dimension L (mm) | 35 |
| Dimensions d (mm) | 50 |
| Handle Type | Round type |
| Material (Gasket) | Non-asbestos packing |
| Material (Handle) | ZDC |
| Material (Main Unit) | Brass/C3771BE |
| Material (disc) | C3771BE |
| Maximum Operating Pressure (MPa) | 1. 18 (static water below + 120 ° C), 0. 88 (saturated steam) |
| Nominal Diameter A | 8 |
| Nominal Diameter B | 1/4 |
| Shape | Straight |
| Suitable fluid | water vapor |
| TRUSCO Number | 163-5824 |
| Type | General purpose valve |
| Type of Connection | Screw-in type |
| Valve Type | Gate valve |
