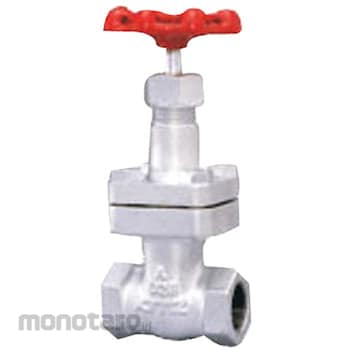

Kitz 20K Ductile Iron Gate Valve (Fire Rating/Certified Product) (20SLS Series)
#Grup produk P103049760
Spesifikasi
| Material (stem) | SUS420J2 |
|---|---|
| Material (disk) | SCS1 |
| Material (bonnet) | FCD-S |
| Material (Handle) | FCD450-10 |
| Class | 20K |
| Body Material | FCD-S |
| Connection Method | The screw-shaped |
| Dimension D1 (mm) | 100 |
| Dimension H (mm) | 214 |
| Dimension L (mm) | 85 |
| Dimension S (mm) | 47 |
| Dimensions d2 (mm) | Rc1 |
| Handle Shape | circular |
| Lift Amount (mm) | 24 |
| Material (Gasket) | Non-asbestos sheet |
| Material (Packing) | Non-asbestos |
| Maximum Working Pressure (MPa) | 2.8 |
| Nominal Diameter A | 25 |
| Nominal Diameter B | 1 |
| Shape | straight |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
When applying the High Pressure Gas Safety Act, the air and gas will be 2.4MPa (-5°C to +220°C).Ulasan Produk
