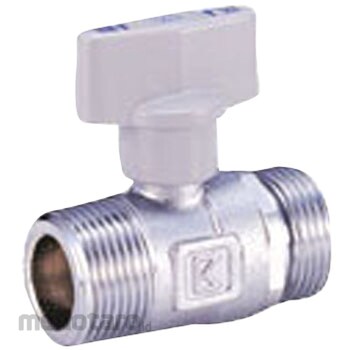

Kitz 10K Orange Bowl (Standard Bore, Taper Male Thread X Parallel Male Thread) (S8 Series)
#Grup produk P103048558
Spesifikasi
| Material (Handle) | ZDC2 |
|---|---|
| Dimension D1 (mm) | Rc1/2 |
| Material (O ring) | EPDM |
| Class | 10K |
| Dimension H1 (mm) | 56 |
| Body Material | C3771BE+Ni-Cr-plated |
| Cap Material | C3771BD+Ni-Cr-plated |
| Connection Method | The screw-shaped |
| Dimension D (mm) | Φ9.2 |
| Dimension H (mm) | 44 |
| Dimension L (mm) | 52.5 |
| Dimension L1 (mm) | 28.5 |
| Dimension L2 (mm) | 24 |
| Dimensions d2 (mm) | G1/2 |
| Dimensions d3 (mm) | 12 |
| Fluid Used | water |
| Handle Shape | T-shaped |
| Nominal Diameter A | 15 |
| Nominal Diameter B | 1/2 |
