-Only necessary to cut the capcon according to the wire to be used.
-1 piece correspondence to a wide range of wire diameter.
-Lock nut is not supplied with the product. If necessary, please use commercially available piping nut CTC19 for thin steel.
-To the cable drawing part of various electric wiring equipment.

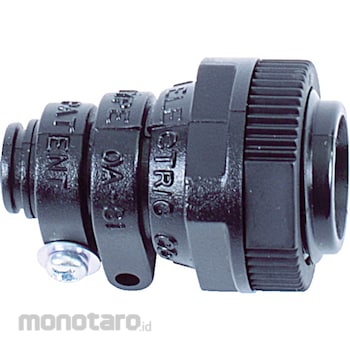

Ohm Electric Capcon
#Grup produk P102979950
Spesifikasi
| Color | Black |
|---|---|
| Compatible Wire Diameter | phi6.0 to 12 (mm) |
| Mounting Hole Diameter | phi21.0mm |
| Mounting Screw | CTG16 (G1/2) |
| Compatible Plate Thickness | 4.0mm or less |
| Working Ambient Temperature | -25 to +70degree C |
| Main Body Materials | Soft Polyvinyl Chloride |
| Lock Nut Materials | Nylon 66 (UL94V-2) |
| Screws, Press Nuts Materials | Iron (trivalent chromate plating) |
| Threaded Portion Materials | Polycarbonate (UL94V-2) (OA-S1 is soft PVC, internal reinforced ABS) |
