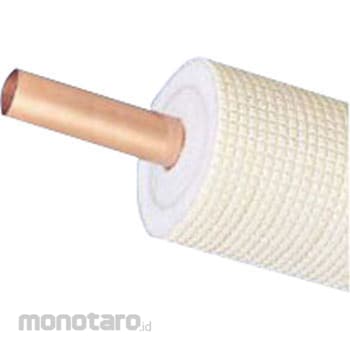

INABA DENKO Neo Coil KHE

When Using, Please Use after Confirming That The Worst Environmental Condition of The Site of Use is within The Range of Protection of Manufacturer Technical Data. Polyethylene Foam Used for Heat Insulating Material is Combustible Material. During Brazing Work, Please Work Far Away from The Brazed Part so That The Heat Insulating Material Will Not be Ignited or Damaged by The Flame of The Burner and Its Heat Transfer. The Thermal Insulation Shrinks by about 2% at The Maximum in The Length Direction. Please Treat with Thermal Insulation Adhesive Tape (JTS) Etc. so That Copper Tube Will Not be Exposed due to Shrinkage of Insulation Material. When Flaring The NC-620 Z-KHE, Please Check with Your Flare Tool Maker after Confirming That Your Flare Tool Can be Used for This Copper Pipe Wall Thickness. Also, Please be Sure to Ensure That The Flared Finished Outside Diameter after Machining is 23. 6 to 24. 0mm (when Used for R410A) or 22. 9 to 23. 3mm (when Used for R22, R407C) on, Please Use.

It Exhibits Extremely High Anti-Sweatability Under High Temperature and High Humidity Environment. Copper Pipes Conform to JIS H3300 C1220T and Refrigeration Safety Regulations Related Example Standards. Ceramic Crosslinking 30 Times Foamed Poly
