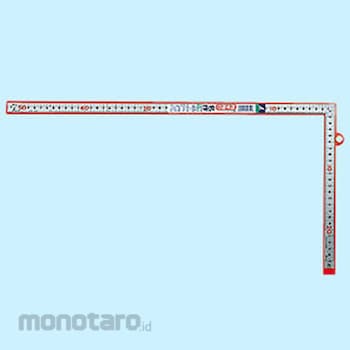

Shinwa Rules Shoulder Thickness Same Silver 50cm Front and Back Same Class Masterpiece
#Grup produk P102953581
Spesifikasi
| Shape | Same thickness |
|---|---|
| Tolerance (mm) | Overall length ± 0.2 |
| Material | Stainless steel SUS420J2 |
| Measuring Range (cm) | 0 to 50 |
| Front Side Scale (long branches) | (Outside) 50cm, (in) 45cm |
| Front Side Scale (short branches) | (Outside) 25cm, (inside) 20cm |
| Length 1 (mm) | 260.0 |
| Length 2 (mm) | 520 |
| Perpendicularity (mm) | It does not exceed ± 0.1 at 100 |
| Rear Side Scale (long branches) | (Outside) 50cm, (in) 40cm tenon |
| Rear Side Scale (short branches) | (Outside) 25cm, (Inside) 20cm |
| Thickness (mm) | 1.4 |
| Type | Shoulder 50cm for steel work (front and backcm scale) |
| Weight (g) | 88.0 |
| Width (mm) | 15.0 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
For calibration-written products, it will be impossible to cancel after placing an order.Feature
Since the scale is engraved with etching, it will not disappear. We adopted large and clear scale figures. Both front and back arecm scale. It is all JIS standard goods. With assign ment graduation. There is a part number in themain body. The sUlasan Produk
