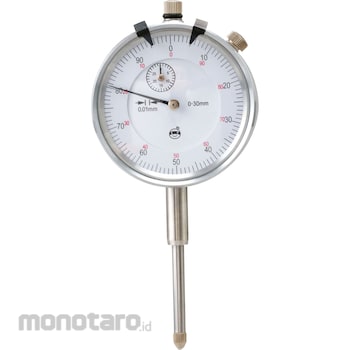

monotaro Long Stroke Dial Gauge
#Grup produk P102940055
Kondisi Barang:
Bergaransi
Informasi selengkapnya terkait garansi
dapat ditemukan pada Rincian Produk
dapat ditemukan pada Rincian Produk
Garansi Produk: WARRANTY MonotaRO Private Brand (1 year)
Spesifikasi
| Dimension H (mm) | 53.5 |
|---|---|
| Stem Diameter (φmm) | 8 |
| Dimensions a (mm) | 37.5 |
| Dimensions c (mm) | 58 |
| Measuring Force (N) | Below 2.0 |
| Dimension D (mm) | 16.3 |
| Dimension F (mm) | 21.5 |
| Dimension G (mm) | 37.5 |
| Dimensions b (mm) | 88 |
| Dimensions e (mm) | 20 |
| Dimensions j (mm) | 9.0 |
| Measuring Range (mm) | 0 to 30 |
| Outer Diameter (φ mm) | 57 |
| Overall Length (mm) | 115.0 |
| Repeat Precision (µm) | 5 |
| Return Error (µm) | 7.0 |
| Scale Interval (mm) | 0.01 |
| Scale Specification | ± 0-100 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
- Please stop using it for purposes other than use. - Do not drop it, hit it, do not disassemble or remodel it.
- Do not lubricate. It may induce dust and malfunction.
- Please keep the storage place with less humidity, dust, oil mist.
Feature
It is a dial gauge with a long measuring range. The back lid is a type with ear-gold. Usable For measurement of displacement of plane unevenness, axial deflection, perpendicularity etc.Dokumentasi Produk
