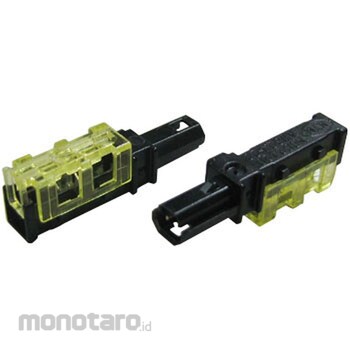

NICHIFU Press-Through Type Relay Connector
#Grup produk P102913574
Kondisi Barang:
Authorized Partner
Spesifikasi
| Electric AWG Wire Conjugation Range | #24-20 |
|---|---|
| Working Temperature Range | 0 to 40°C |
| Operating Temperature Range | -20 to 120°C |
| Rated Voltage | 100V |
| Material (Insulator) | Polycarbonate |
| Compatible | Brija (JIS B 4614 call 150) |
| Covering Maximum Outer Diameter | 2.1mm |
| Materials (Contact) | Phosphor bronze with tin plating |
| Rated Current | 2A (AWG 24-22), 3A (AWG 20) |
| Type | Plier tap connector |
| Wire Conjugation Range Stranded (mm²) | 0.2 to 0.5 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
- It is for copper wire.- Wire other than applicable wire can not be used.
- Please use within the rated voltage, rated current, operating temperature range and working temperature range.
- You can not use outdoors.
- Avoid using in environments with high temperature, low temperature, high humidity, dust etc, environment subject to vibration and shock, water, various oils, chemicals, corrosive gas etc.
- Take measures to fix the wire so that tension is not applied to the wire.
- You can not reuse after wire connection.
Feature
- Male and female connections are possible with a single Connector.- Connectors can Be connected and Used as multipolar.Dokumentasi Produk
