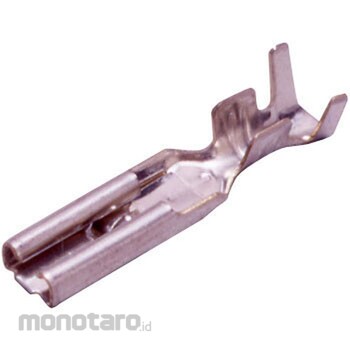

NICHIFU Terminal for Easy Lock Connector
#Grup produk P102913334
Kondisi Barang:
Authorized Partner
Spesifikasi
| Insulation Resistance | 1000Mohm |
|---|---|
| Rated Voltage | 250V |
| Contact Holding Force | 50N or more |
| Overall Length | 17mm |
| CSA Standard Acquisition | Yes |
| Compatible | NH71 |
| Dimension E | 7.0mm |
| Material (Terminal) | Oxygen-free copper (electric tin plating) |
| Operating Temperature Range | -40 to +105°C |
| Rated Current | 10A |
| Type | Easy lock connector |
| UL Standard Acquisition | Yes |
| Width | 3.1mm |
| Withstand Voltage | 2000V |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
- Please use the one with the matching tab thickness - Please use with housing and set
- Abnormal heat may generate and fire may occur
