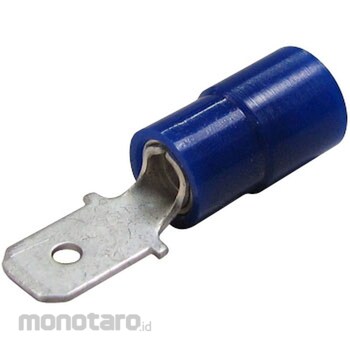

NICHIFU Insertion Type Connection Terminal M Type
#Grup produk P102913097
Kondisi Barang:
Authorized Partner
Spesifikasi
| Type | Plug type connection terminal |
|---|---|
| UL Standard Acquisition | Yes |
| Overall Length | 19.5mm |
| Electric AWG Wire Conjugation Range | #14 |
| Rated Voltage | 300V |
| Acquired JIS Standard | Nothing |
| CSA Standard Acquisition | Yes |
| Color | Blue |
| Compatible | Manual tool/NH12, NH32 , Body/NA10, NA3 , Head/N10 12, N3 12 |
| Dimension D (mm) | ø 4.5 |
| Dimensions h | 10.0mm |
| Incombustibility | UL94V-0 |
| Material (Insulator) | PVC |
| Material (Terminal) | Oxygen-free copper (electric tin plating) |
| Operating Temperature Range | -40 to +75°C |
| Partner Tab Thickness | 0.5mm |
| Terminal Shape | Plug-in type |
| Width | 4.8mm |
| Wire Conjugation Range Stranded (mm²) | 2 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
- Copper wire only - Please use the specified applicable crimping tool
- Please use within the wire conjugation range
Feature
- The fitting part is exposed.- There is a copper pipe between the terminal and the insulator, but the length of the copper pipe is the same as the length of the terminal tube.Dokumentasi Produk
