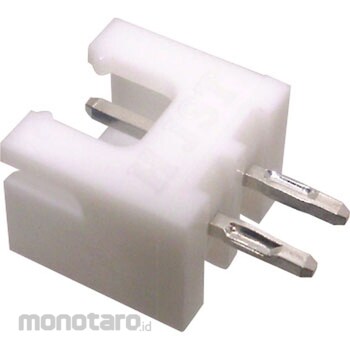

JST XH Connector Post with Post
#Grup produk P102907582
Spesifikasi
| Color | Natural (white) |
|---|---|
| Compatible | XHP- * |
| Electric AWG Wire Conjugation Range (#) | 30 to 22 |
| Compatible Print Substrate Thickness (mm) | 1.6 |
| Contact Resistance (miliΩ) | Initial: 10 or less _ x 1000 D _. After environmental test: 20 or less |
| Insulation Resistance (MΩ) | Over 1000 |
| Material | Brass, 66 Nylon |
| Operating Temperature Range (°C) | -25 to + 85 _ x 000 D _.(Including temperature rise value during energization) |
| Rated Current (A) | 3 AC, DC .(When using AWG # 22) |
| Rated Voltage (V) | 250 AC, DC |
| Standard | Recognized E 60389 - x 000 D -. Certified LR 20812 _ x 000 D _. J 50014297 |
| Surface Processing | Tin plating with copper base (reflow processing) |
| Withstand Voltage | AC 1000 V, 1 minute |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Operating Temperature Range: -25 to +85°C (Including Temperature Rise Value During Energization).
