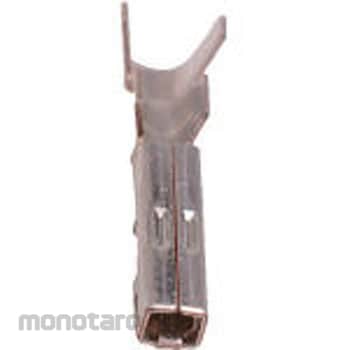

JST Socket Contact for HL Connector
#Grup produk P102907175
Spesifikasi
| Compatible Electiric Wires | 0.3 to 0.75 mm <sup> 2 </ sup>, AWG # 22 to # 18 |
|---|---|
| Material | Phosphor bronze, tin plating (reflow processing) |
| Operating Temperature Limits | -25 degree Celsius ~ + 90 degree Celsius (Including temperature rise value) |
| Rated Current (A) | (Maximum) 7 |
| Rated Voltage | MAX 300 V |
| Insulation Resistance | 1000 M omega or more |
| Electric Wire Covering Outer Diameter (mm) | 1.5 to 2.2 |
| TRUSCO Number | 421-8353 |
| Withstand Voltage | AC 1500 V / 1 minute |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
We Adopted A Free Spring Structure at The Contact Part. Inner Lock Structure Was Adopted.UsableFor Relay Connection. 3.96mm Pitch of Wire to Wire Connection.Operating temperature Limits -25 to +90° C (Including Temperature Rise Value)MaterialUlasan Produk
