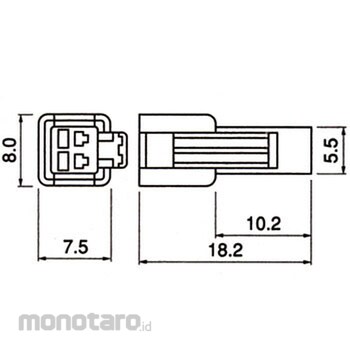

JST Relay Connector SM Series Receptacle Housing
#Grup produk P102906291
Spesifikasi
| Electric AWG Wire Conjugation Range (#) | 28 to 22 |
|---|---|
| Material | Nylon 6, UL 94 V-0 |
| Compatibility Terminal | SYM - 001 T - P 0.6, BYM - 001 T - P 0.6 |
| Compatible Panel Thickness (mm) | 0.5 to 2.0 |
| Contact Resistance (miliΩ) | Initial: 10 or less _ x 1000 D _. After environmental test: 20 or less |
| Insulation Resistance (MΩ) | 500 or more |
| Operating Temperature Range (°C) | -25 to + 85 _ x 000 D _.(Including temperature rise value during energization) |
| Rated Current (A) | MAX 3 AC, DC |
| Rated Voltage (V) | MAX 250 AC, DC |
| Standard | Recognized E 60389 - x 000 D -. Certified LR 20812 _ x 000 D _. R50120150 |
| Type | Receptacle housing (for pin contact) |
| Wire Conjugation Range (mm²) | 0.08 to 0.33 |
| Withstand Voltage | AC 1500 V for 1 minute |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
High Contact Pressure, Double Contact Contact, Shell Type Housing, Applicable to A Wide Range of Panels, Arm Lock MechanismOperating Temperature Range -25 to +85°C (Including Temperature Rise Value During Energization)Ulasan Produk
