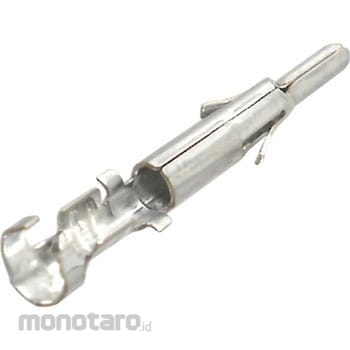

JST Relay Connection Connector EL Series Contact
#Grup produk P102906246
Sebelum PPN:
Rp2.699.900 - Rp3.699.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Form | reel |
|---|---|
| Material | Phosphor bronze |
| Rated Current (A) | MAX 10 AC, DC |
| Contact Resistance (miliΩ) | Initial: 7 or less. After environmental test: 10 or less |
| Insulation Resistance (MΩ) | Over 1000 |
| Operating Temperature Range (°C) | -25 to + 90.(Including temperature rise value during energization) |
| Rated Voltage (V) | MAX 300 AC, DC |
| Standard | Recognised E 60389. Certified LR 20812. R 75052 |
| Surface Processing | Tin plating (reflow processing) |
| Withstand Voltage | AC 1500 V for 1 minute |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
Easy to Insert, Excellent Contact Force, Superior in Inserting Screws at Connector Engagement, Arm Lock Mechanism with Excellent Durability, Double Crimp Contact, Compatibility with ML ConnectorOperating Temperature Range -25 to +90°C (IncludinUlasan Produk
