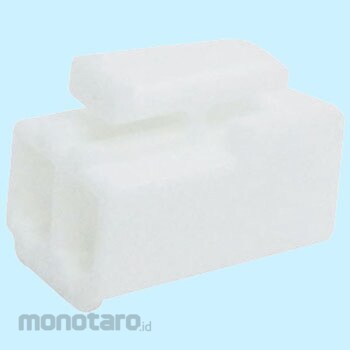

JST PCB Connector VH Series Housing
#Grup produk P102905973
Spesifikasi
| Color | Natural (white) |
|---|---|
| Compatible | Contact: BVH-21T-P1.1, BVH-41T-P1.1. With post with base: B * P - VH, B * PS - VH, B * P - VH - B, S * P - VH. Box type: B * P - VH - FB - B |
| Electric AWG Wire Conjugation Range (#) | 22 - 16 |
| Material | Nylon 6, UL 94 V-0 |
| Compatible Print Substrate Thickness (mm) | 1.6 |
| Contact Resistance (miliΩ) | Initial: 10 or less _ x 1000 D _. After environmental test: 20 or less |
| Insulation Resistance (MΩ) | Over 1000 |
| Operating Temperature Range (°C) | -25 to + 85 (Including the temperature rise value during energization) |
| Rated Current (A) | 10 (AC, DC) (when using AWG # 16) |
| Rated Voltage (V) | 250 AC, DC |
| Standard | Recognized E 60389 - x 000 D -. Certified LR 20812 _ x 000 D _. R 75122 |
| Withstand Voltage | AC 1500 V for 1 minute |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
Proven Box Type Leaf Contact, Compact Large Capacity Connector, Secure Contact HoldingOperating Temperature Range -25 to +85 degrees C (Including Temperature Rise Value During Energization)Ulasan Produk
