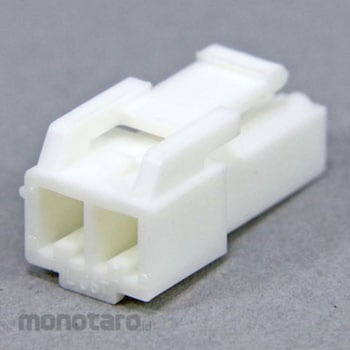

JST Housing Plug for HL Connector
#Grup produk P102904594
Spesifikasi
| Compatible Electiric Wires | AWG # 22 to # 18, 0.3 to 0.75 mm <sup> 2 </ sup> |
|---|---|
| Dimensions a (mm) | 11.6 |
| Dimensions b (mm) | 7.5 |
| Dimensions e (mm) | 2.5 |
| Insulation Resistance | 1000 M omega or more |
| Material | Nylon 66 (UL 94 V-0) |
| Operating Temperature Limits | -25 degree Celsius + 90 degree Celsius (Including temperature rise value) |
| Rated Current (A) | (Maximum) 7 |
| Rated Voltage | MAX 300 V |
| Withstand Voltage | AC 1500 V / 1 minute |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
We Adopted A Free Spring Structure at The Contact Part. Inner Lock Structure Was Adopted.UsableFor Relay Connection. 3.96mm Pitch of Wire to Wire Connection.Operating Temperature Limits -25 to +90°C (Including Temperature Rise Value)Ulasan Produk
