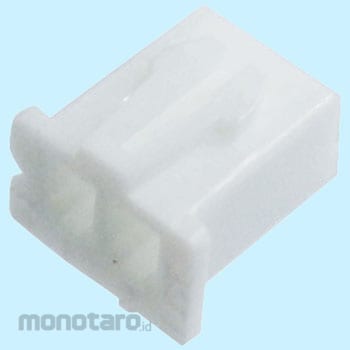

JST Connector for Printed Circuit Board XH Series Housing
#Grup produk P102904275
Spesifikasi
| Color | Natural (white) |
|---|---|
| Compatible | Pin: BXH - 001T - P 0.6 with base: B * B - XH - A (LF) (SN) |
| Compatible Electiric Wires | AWG # 30 # 22 |
| Compatible Print Substrate Thickness (mm) | 1.6 |
| Contact Resistance (miliΩ) | Initial: 10 or less _ x 1000 D _. After environmental test: 20 or less |
| Insulation Resistance (MΩ) | Over 1000 |
| Material | Nylon 6, UL 94 V-0 |
| Operating Temperature Range (°C) | -25 to + 85 (Including the temperature rise value during energization) |
| Pitch (mm) | 2.5 |
| Rated Current (A) | 3 (AC, DC) (when using AWG # 22) |
| Rated Voltage (V) | 250 (AC, DC) |
| Standard | Recognized E 60389 - x 000 D -. Certified LR 20812 _ x 000 D _. R50014297 |
| Withstand Voltage | AC 1000 1 minute |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
Creative Double Leaf Contact, Box Type Base Post, Boss Equipped Type Base Attaching Post, Compatibility with AH TerminalOperating Temperature Range -25 to +85 degrees C (Including Temperature Rise Value During Energization)Ulasan Produk
