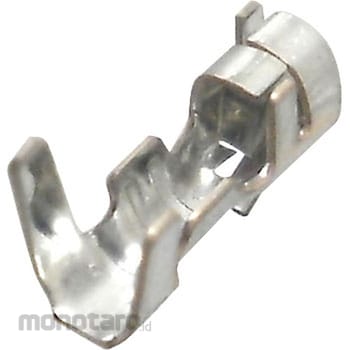

JST Connector for Printed Circuit Board XH Series Contact
#Grup produk P102904266
Spesifikasi
| Compatible | Housing: XH series |
|---|---|
| Electric AWG Wire Conjugation Range (#) | 28 to 22 |
| Material | Phosphor bronze |
| Rated Current (A) | 3 AC, DC.(When using AWG # 22) |
| Compatible Print Substrate Thickness (mm) | 1.6 |
| Contact Resistance (miliΩ) | Initial: 10 or less. After environmental test: 20 or less |
| Electric Wire Covering Outer Diameter (mm) | 1.2 to 1.9 |
| Insulation Resistance (MΩ) | Over 1000 |
| Operating Temperature Range (°C) | -25 to +85.(Including temperature rise value during energization) |
| Rated Voltage (V) | 250 AC, DC |
| Standard | Recognised E 60389. Certified LR 20812. J 50014297 |
| Surface Processing | Tin plating (reflow processing) |
| Type | standard |
| Wire Conjugation Range (mm²) | 0.08 to 0.33 |
| Withstand Voltage | AC 1000 V, 1 minute |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
Creative Double Leaf Contact, Box Type Base Post, Boss Equipped Type Base Attaching Post, Compatibility with AH TerminalOperating Temperature Range -25 to +85 degrees C (Including Temperature Rise Value During Energization)Ulasan Produk
