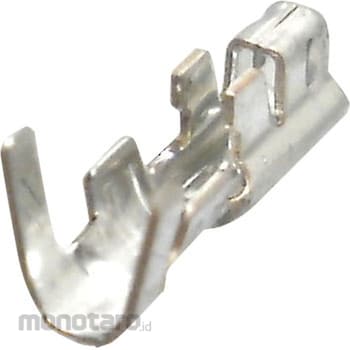

JST Connector for Printed Circuit Board XA Series Contact
#Grup produk P102904239
Spesifikasi
| Material | Phosphor bronze |
|---|---|
| Rated Current (A) | 3 AC, DC.(When using AWG # 22) |
| Rated Voltage (V) | 250 AC, DC |
| Standard | Recognised E 60389. Certified LR 20812. R 985 1220 |
| Compatible | XAP- * V |
| Compatible Print Substrate Thickness (mm) | 1.6 |
| Contact Resistance (miliΩ) | Initial: 10 or less. After environmental test: 20 or less |
| Insulation Resistance (MΩ) | Over 1000 |
| Operating Temperature Range (°C) | -25 to +85.(Including temperature rise value during energization) |
| Surface Processing | Tin plating (reflow processing) |
| Withstand Voltage | AC 1000 V, 1 minute |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
With secure locking device.Ulasan Produk
