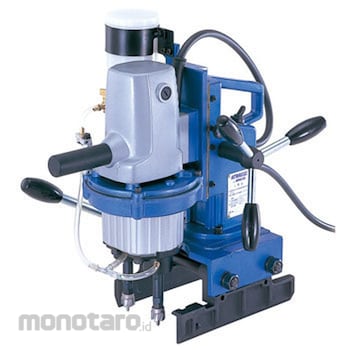

NITTO KOHKI Mesin Bor Magnet Atra Mini Ace Double
#Grup produk P102836406
Spesifikasi
| Cabtire Code | 3m (1.25 mm2, 3 cores) |
|---|---|
| Power | AC100V (50/60Hz) |
| Accessories | Mini brooches Ø 15: 2pcs. Mini brooch wrench: 1pc. Hexagonal bar spanner 2.5, 6mm: 1pc. Spanner 8x10mm: 1pc.Spanner 12 long: 2pcs. Cutting oil 0.5 L: 1 box |
| Type | Portable drilling machine |
| Usable Brade | Mini brooches |
| Body Dimension (mm) Depth | 360 |
| Body Dimension (mm) Height | 437.5 |
| Drilling Ability (mm) | Ø 11.5, Ø 13.5, Ø 14, Ø 15, Ø 18, Ø 22 |
| Maximum Plate Thickness (mm) | 6 |
| Maximum stroke (mm) | 91 |
| Pitch Hole Drilling Width (mm) | 40 to 60 |
| Rated Current (A) | 7 |
| Power Consumption Rated (W) | 680 |
| Unit Dimensions Width (mm) | 280 |
| Vice Capacity (mm) | 50 to 150 |
| No Load Rotation Speed (rpm) | 1100 |
| TRUSCO Number | 209-8440 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
Work efficiency improved by simultaneous drilling of two holes. It is easy to rotate two axis head 90 degrees with one touch. Align the vise to the scribe line, you can easily align.Ulasan Produk
