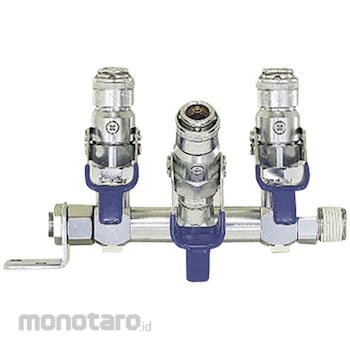

NITTO KOHKI Purge Line Coupler
#Grup produk P102834648
Spesifikasi
| Number of Branches | 3 |
|---|---|
| Operating Temperature Range | -20 to +60℃ |
| Material (Seal) | Nitrile rubber |
| Size | [Intake port) R1 / 2, [outlet) socket (PV-30SM) |
| Installation Shape | For 3 branch piping |
| Maximum Working Pressure | 1.0MPa |
| Fluid | air |
| Socket or Plug | socket |
| Pressure resistance | 1.5MPa [15kgf/cm2) |
| Valve Structure | One-way opening / closing type |
| Body Material | Brass (chrome plating) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
Remove residual pressure by lever operation. The attachment and detachment of the coupler is extremely smooth. . Three air can be taken out simultaneously from one air pipe.UseableFor low pressureUlasan Produk
